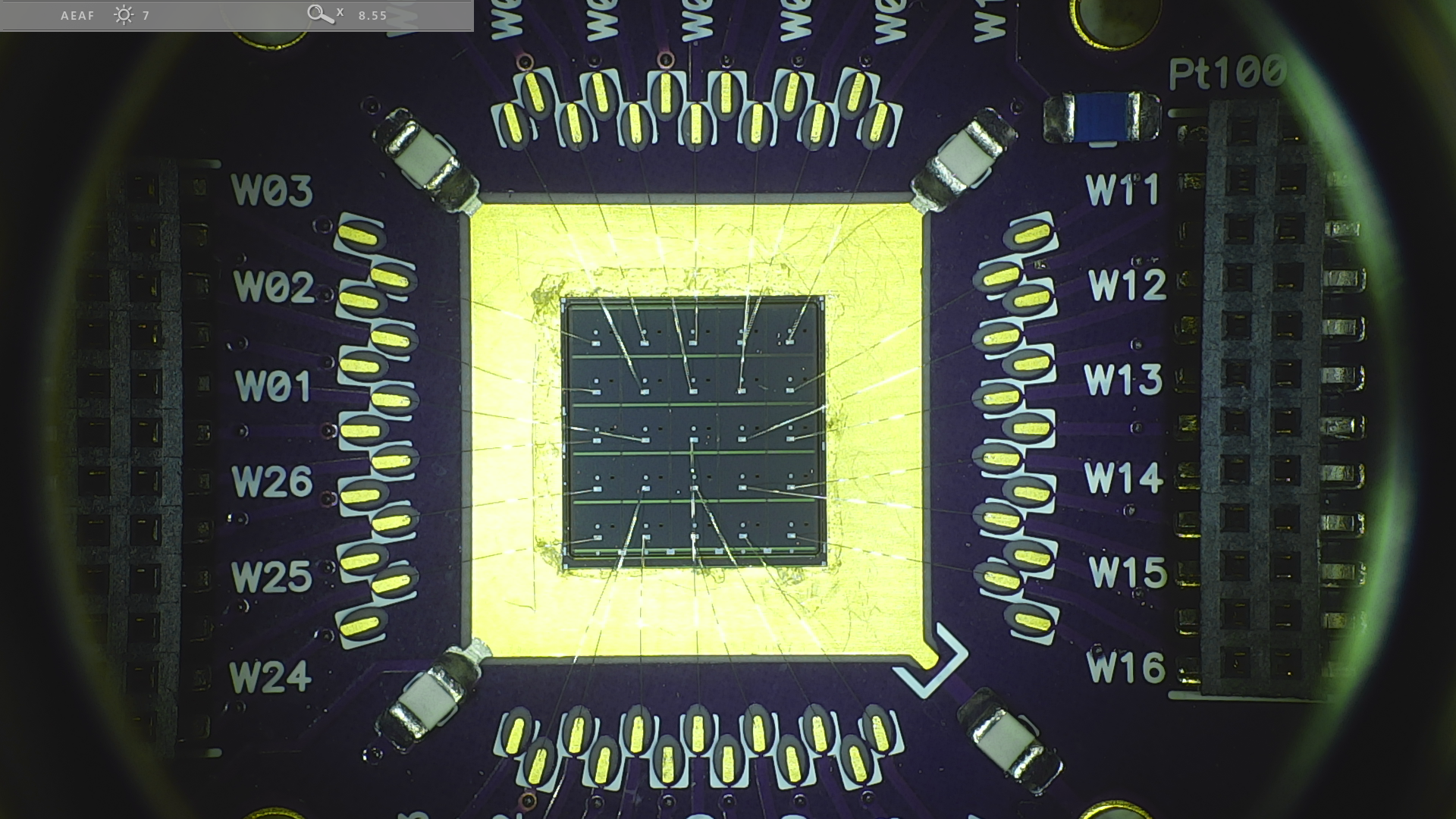

Sensor connection Scheme for 5x5 FBK on 26 channel board¶
W03 (TL) -> Scope Ch 1 W10 (TR) -> Scope CH2 W13 - CR -> Scope ch3 W16 (BR) -> Scope Ch 4 W24 (BL) -> Scope Ch5 W26 - CL -> Scope ch6 W20 (centre)-> Scope Ch7
Last update: July 21, 2023
W03 (TL) -> Scope Ch 1 W10 (TR) -> Scope CH2 W13 - CR -> Scope ch3 W16 (BR) -> Scope Ch 4 W24 (BL) -> Scope Ch5 W26 - CL -> Scope ch6 W20 (centre)-> Scope Ch7
